Effect of Ni-additive on jute stick charcoal-mediated carbon anode of Li-ion batteries

  • Tauhidul Hossain Department of Mechanical Engineering, Chittagong University of Engineering & Technology, Chittagong, Bangladesh
  • Md. Arafat Rahman Department of Mechanical Engineering, Chittagong University of Engineering & Technology, Chittagong, Bangladesh
  • Konok Chandra Bhowmik Department of Mechanical Engineering, Chittagong University of Engineering & Technology, Chittagong, Bangladesh
  • Rudra Barua Department of Mechanical Engineering, Chittagong University of Engineering & Technology, Chittagong, Bangladesh
0 Abstract Views 0 Downloads
Abstract

Li-ion batteries (LIBs) have gained popularity as a potential device for sustainable energy transition. Because of its simple and environmentally benign production, biomass-derived amorphous carbon is a viable anode for LIBs as a possible replacement for graphite. However, its performance is limited by structural deterioration and low conductivity. Therefore, developing low-cost biomass-derived carbon anodes with improved electrical conductivity and cycling stability is important for sustainable LIB applications. Here, slow pyrolysis has been used to produce amorphous carbon from jute stick charcoal. The jute sticks were pyrolyzed at 400 °C, and the structural characterization confirmed the successful formation of amorphous carbon with flake-like porous morphology. The resulting carbon was evaluated as an anode material in a full cell. After 500 cycles, this anode demonstrated a discharge capacity of 125.46 mAh/g and a Coulombic efficiency (CE) of 68.4% at 1C. In addition, Ni metal powder additives were added to improve cell performance. Ni considerably reduced the cell impedance and enhanced electrode conductivity. As a result, after 500 cycles, the Ni-added anode demonstrated improved performance with a discharge capacity of 148.02 mAh/g and a CE of 73% at 1C. Electrochemical investigations further indicated reduced cell resistance after Ni incorporation, demonstrating enhanced electronic conduction and interfacial charge-transfer kinetics.

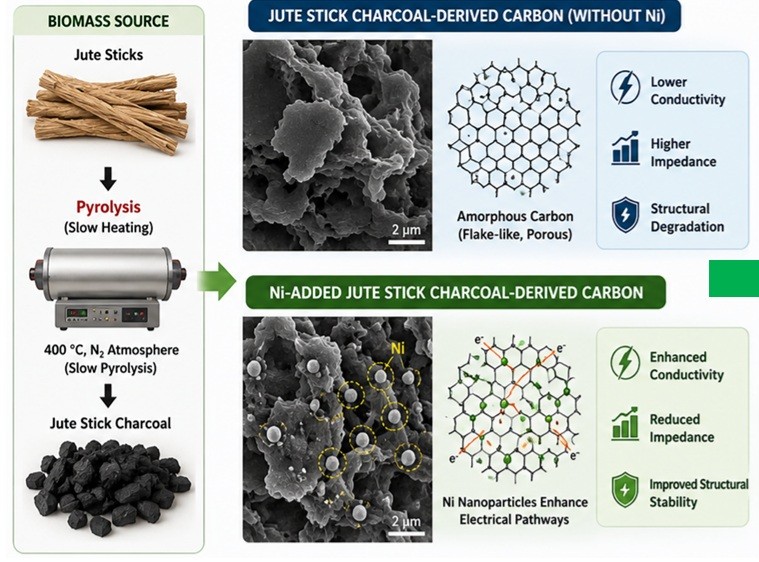

Graphical Abstract
Keywords
Anode Li-ion batteries Jute stick Charcoal Amorphous carbon Nickel nanoparticle
How to Cite
Hossain, Tauhidul, Md. Arafat Rahman, Konok Chandra Bhowmik, and Rudra Barua. 2026. “Effect of Ni-Additive on Jute Stick Charcoal-Mediated Carbon Anode of Li-Ion Batteries”. Future Energy 5 (4):12-17. https://fupubco.com/fuen/article/view/1188.
References
  1. Chandra Bhowmik, K., et al., From Lithium‐Ion to Sodium‐Ion Batteries for Sustainable Energy Storage: A Comprehensive Review on Recent Research Advancements and Perspectives. The Chemical Record, 2024. 24(12): p. e202400176.
  2. Das, S., Experimental investigation of cycling characteristics of anatase TiO2 nanotubes as negative electrode of lithium-ion batteries. 2023, CUET. http://103.99.128.19:8080/xmlui/handle/123456789/506
  3. Rahman, M.M., et al., Valuation of anode materials for high-performance lithium batteries: From graphite to lithium metal and beyond. Electrochemical Energy Reviews, 2025. 8(1): p. 14.
  4. Wada, H., et al., Graphitization of carbonaceous matter during metamorphism with references to carbonate and pelitic rocks of contact and regional metamorphisms, Japan. Contributions to Mineralogy and Petrology, 1994. 118(3): p. 217–228.
  5. Montiel-García, A., et al., An Overview of the Transition from Amorphous Carbon to an Ordered Graphitic Crystalline Plane for Applications. Materials and Sustainability, 2025. 1(3): p. 12.
  6. Barua, R., K.C. Bhowmik, and M.A. Rahman, Feasibility Study of Basic Steel Slag as Anode of Li‐Ion Batteries. CleanMat, 2026. https://doi.org/10.1002/clem.70038
  7. Huong, D.T., et al., Applying nanocarbon prepared from coal as an anode in lithium-ion batteries. Green Processing and Synthesis, 2025. 14(1): p. 20240151.
  8. Wang, S.-X., et al., Lignin-derived fused electrospun carbon fibrous mats as high performance anode materials for lithium ion batteries. ACS applied materials & interfaces, 2013. 5(23): p. 12275–12282.
  9. Pham, T.L., et al., Synthesis and characterization of porous SiO2/C composite from rice husks through activation with sodium hydroxide and its application in pouch cell Li-ion batteries. 2024. https://doi.org/10.22036/pcr.2024.451396.2511
  10. Jiang, Q., et al., Biomass carbon micro/nano-structures derived from ramie fibers and corncobs as anode materials for lithium-ion and sodium-ion batteries. Applied Surface Science, 2016. 379: p. 73–82.
  11. Han, P., et al., Copper nanoparticle-incorporated carbon fibers as free-standing anodes for lithium-ion batteries. Nanoscale research letters, 2016. 11(1): p. 172.
  12. Yoon, S., et al., Development of a high-performance anode for lithium ion batteries using novel ordered mesoporous tungsten oxide materials with high electrical conductivity. Physical Chemistry Chemical Physics, 2011. 13(23): p. 11060–11066.
  13. Zhang, X., J. Ma, and K. Chen, Impact of morphology of conductive agent and anode material on lithium storage properties. Nano-Micro Letters, 2015. 7(4): p. 360–367.
  14. Ding, W., et al., Nickel-embedded carbon materials derived from wheat flour for Li-Ion storage. Materials, 2020. 13(20): p. 4611.
  15. Nguyen, Q.N., et al., Deciphering energy storage mechanisms and pore structure effects in sugarcane bagasse-derived biomass carbon for lithium–ion batteries and supercapacitors. Biomass and Bioenergy, 2026. 204: p. 108325.
  16. Chen, S., et al., Synthesis of BCN nanoribbons from coconut shells using as high-performance anode materials for lithium-ion batteries. Electrochimica Acta, 2020. 346: p. 136239.
  17. Wang, Q., et al., A waste corn cob core-derived SiO2@ graphene-like carbon nanocomposite and its application in lithium-ion battery. Journal of Materials Science: Materials in Electronics, 2021. 32(1): p. 1278–1288.
  18. Ţucureanu, V., A. Matei, and A.M. Avram, FTIR spectroscopy for carbon family study. Critical reviews in analytical chemistry, 2016. 46(6): p. 502–520.
  19. Benedetti, E., et al., FTIR‐microspectroscopy and DSC studies of poly (vinylidene fluoride). Polymer international, 1996. 41(1): p. 35–41.
  20. Buiel, E. and J. Dahn, Li-insertion in hard carbon anode materials for Li-ion batteries. Electrochimica acta, 1999. 45(1-2): p. 121–130.
  21. Yang, F., et al., A study of the relationship between coulombic efficiency and capacity degradation of commercial lithium-ion batteries. Energy, 2018. 145: p. 486–495.
  22. Smith, A.J., et al., Precision Measurements of the Coulombic Efficiency of Lithium-Ion Batteries and of Electrode Materials for Lithium-Ion Batteries. Journal of The Electrochemical Society, 2010. 157(2): p. A196.
  23. Ouyang, H., et al., Porphyra derived hierarchical porous carbon with high graphitization for ultra-stable lithium-ion batteries. Materials Letters, 2019. 235: p. 111–115.
  24. Subrata, K., Impedance spectroscopy for electroceramics and electrochemical system. advanced energy conversion, 2024: p. 10–56.
  25. Soler-Piña, F.J., et al., Highly graphitized carbon nanosheets with embedded Ni nanocrystals as anode for Li-ion batteries. Nano Research, 2020. 13(1): p. 86–94.
